Edit Port Bus

This feature is useful for editing port buses in array cells. Array cells typically follow a simple pattern with regularly spaced positions and incrementing or decrementing bus numbers.

This function supports three modes: Only, Copy-Move, and Reordering.

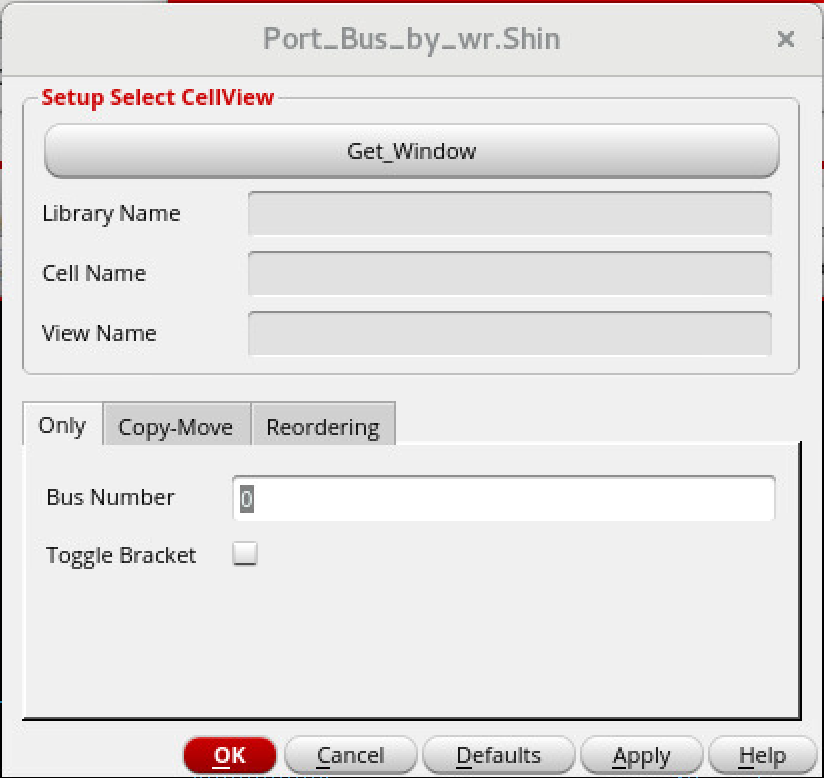

Only Mode

  • Allows you to change the port bus numbers in the selected labels.

  • You can also toggle the bracket style (e.g., < > ↔ [ ]).

../_images/gui_Port_Bus_1.png

<Only Mode>

Copy-Move Mode

  • Enables you to copy labels and change their port bus numbers.

  • You can repeat this operation multiple times by setting the Repeat_Num value.

../_images/gui_Port_Bus_2.png

<Copy-Move Mode>

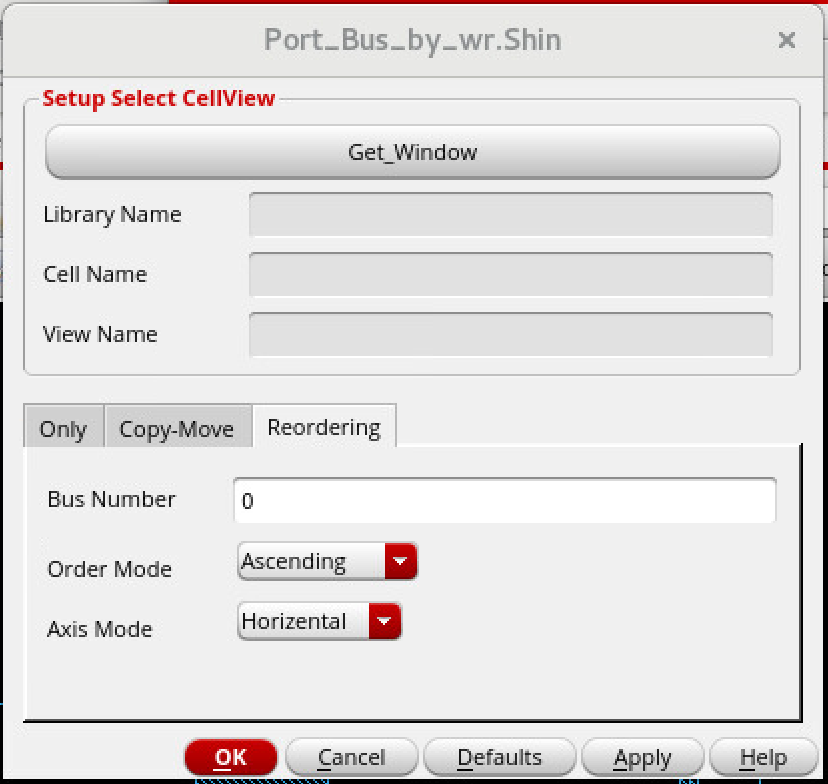

Reordering Mode

  • Allows you to reorder the selected labels.

  • You can set the order to ascending or descending.

  • You can also set the axis mode to horizontal or vertical.

../_images/gui_Port_Bus_3.png

<Reordering Mode>
